Use this reference to request the correct model documents. The listed checks are purchasing questions; they do not establish inventory, tested performance or suitability of an unnamed product.
Ask the factory to state nominal capacity, working fill, unit system, empty mass and loaded mass basis. A 5 gallon label must specify US gallons or another gallon definition. Request dimensions, harness adjustment and the location of the fill opening before accepting a larger alternative.
Request pressure range, control method, nozzle code, flow unit and spray-pattern description. Compare flow at the same pressure. A boom sprayer nozzle reference from a different equipment class cannot establish backpack model compatibility.
Request illustrated parts, seal and hose materials, cleaning instructions, battery and charger information where applicable, and replacement ordering references. Chemical compatibility should be confirmed against the formulation and exact wetted materials.
Downloads are supplied after a specific model is identified. No generic file here is presented as an approved manufacturer's manual. Ask for a specification sheet, operator manual, exploded parts diagram and applicable test or shipping documents in the required language.

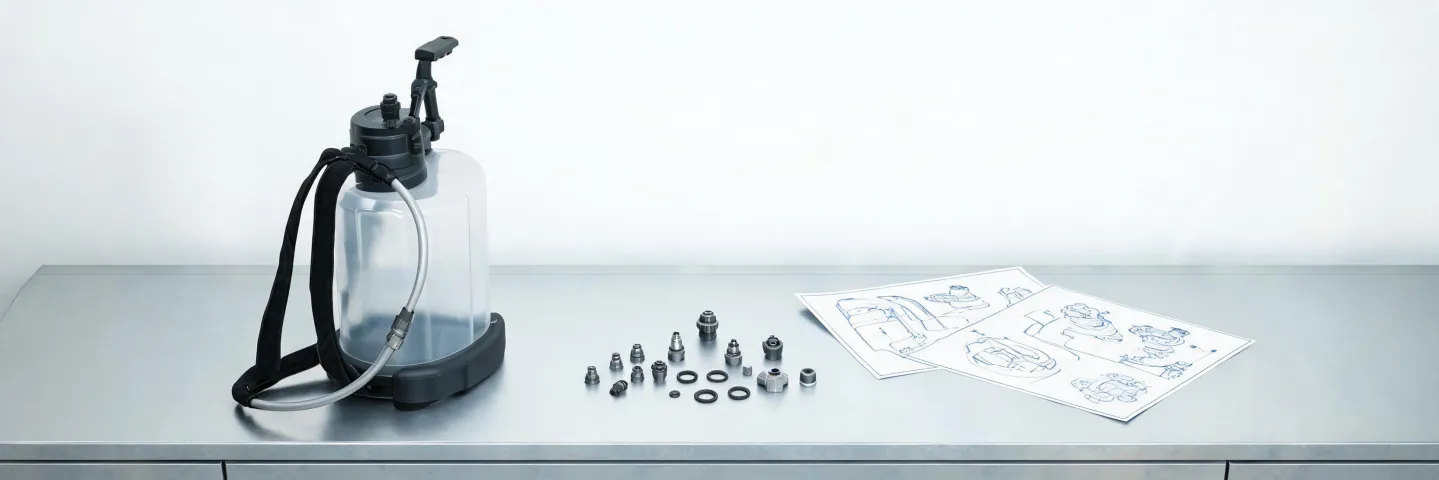

For a sample review, record model identity, nozzle and pressure setting, battery condition and water test method. Compare collected output over an agreed interval under the same conditions. Record observations and discrepancies; this comparison does not replace the manufacturer's chemical application instructions or destination requirements.
| Field | Required record | Why it changes the decision |
|---|---|---|
| Tank capacity | US gal or L; working fill; loaded mass basis | A larger fill may reduce refill stops while increasing carried weight. |
| Discharge | Flow in gpm or L/min at pressure in psi or bar; nozzle identity | Maximum pressure alone does not define the application rate or coverage. |
| Power | Manual pump or battery package; charger and runtime conditions | Powered operation introduces charging and replacement costs; manual operation requires sustained pumping. |
| Commercial scope | Quantity, currency, packing, spares, destination and freight basis | A per-unit budget and a whole-order budget cannot be compared without consistent inclusions. |
A premium or mid-range preference may prioritize documentation and replaceable parts. A budget-friendly option still needs the same mandatory duty and compatibility checks. Use the product catalog to name the configuration; identify any unresolved requirement in the inquiry.
Share your tank, spray duty, quantity and destination to request factory quotation documents.
